▇ General
| Model number | T80 series |
| Accuracy | ±0.5% of full scale |
| Supply voltage | 220Vac, 50/60 Hz |
| Input type | Thermocouple: K, J, R, S, B, E, N, T RTD: Pt100, Cu50 Voltage: 0-5V, 1-5V Current: 0-20mA, 4-20mA Resistance: 0-400Ω |
| Output type | None; 4-20mA; 0-10mA; 1-5V; 0-5V |
| Power consumption | Less than 5W |
| Control method | ON/OFF |
| Setting method | Touch switch |
| Indication method | 8-segment 4-digital display and LED indication |
| Alarms | 0 alarms, 2 alarms, 4 alarms |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 85% RH max, non-condensing |

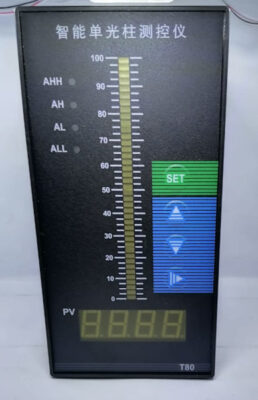

| Alias name | Intelligent single beam process controller |
▇ Output type and description
| Current | 4-20mA, 0-10mA |
| Voltage | 0-5V, 1-5V |
▇ Auxiliary function
| Communication | RS485 (Standard Modbus RTU protocol, you need write the software yourself) |
▇ Input type and measuring range
| K | 0-1300 ℃ (Bolt, Press spring, Ring, M12 probe, M8 probe, Flexible probe, Armor high temperature resistant, Customized thread probe) |
| J | 0-650 ℃ |
| R | 0-1600 ℃ |
| S | 0-1600 ℃ (Probe, Armor) |
| B | 200-1800 ℃ |
| E | 0-800 ℃ (Bolt, Press spring, Ring, Probe, Customized thread probe) |
| N | 0-1300 ℃ |
| T | -200-400 ℃ |
| Pt100 | -200-850 ℃ (Bolt, Press spring, Ring, Probe, Polish rod, Polish rod waterproof, Polish rod waterproof anticorrosive, Flexible probe, Customized thread probe) |
| Cu50 | -50-150 ℃ (Probe, Polish rod waterproof) |
| Current 0-20mA, 4-20mA | 4-20mA output pressure transmitter |
| Linear input | -1999-9999 |
